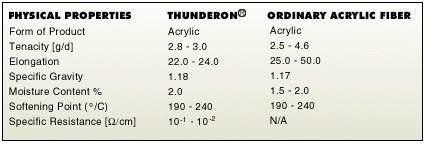

Thunderon® is a conductive fiber material that offers far greater control of static electricity, and superiority in overall performance than carbon coated conductive fiber. Thunderon® is a very thin fiber (.0015" diameter) made with an extremely conductive coating. See the table below for technical specifications.

Thunderon® removes the static charge that makes dirt and particles adhere to work surfaces. It also has good abrasion resistance, does not break easily, and has a strong anti-bacterial performance due to the nature of the surface coating.

Technically, Thunderon® fiber is an acrylic fiber that has been chemically bonded with a layer of copper sulfide. This outer layer becomes a part of the host fiber itself, which precludes the 'flaking' problem experienced by other conductive fibers. The fiber diameter is as fine as .004 cm and its conductive layer is as thin as 300~1,000A. It has electrical specific resistance of 10-1 - 10-2 W/cm.

The physical characteristics of Thunderon® are determined by the base fiber's characteristics.

NOTE: Conductive fibers are NOT recommended for use with unencapsulated electronic microcircuits. Minute pieces of conductive material have been known to cause short circuits.

Thunderon® Brushes

Gordon Brush offers a variety of Thunderon® brushes in standard styles and shapes to accommodate your needs. Brush styles range from the SST Series (pencil style handles) to the Aluminum Handle Series (metal toothbrush style) to the Dissipative Brushes. The Dissipative Brushes are made with two standard handle shapes like drafting brushes. Both handle styles are made with black conductive plastic that has a surface resistivity of 105. See the conductive brush page for brush part numbers and dimensions.

All brush styles with 100% Thunderon® material are very soft because of the fineness of the fiber. The Dissipative brushes are also available with a mixture of Thunderon® and Goat Hair. The mixture of Thunderon® and Goat Hair, while still quite soft, is stiffer than 100% Thunderon® and is less expensive.

Gordon Brush also offers Thunderon® in a variety of brush styles including strip, cylinder, and block. Just let us know your needs, and we will design the brush for you. In addition, ask for and look in our new ESD/Cleanroom Catalog which illustrates 144 different types of brushes, including conductive ones, for ESD and Cleanroom applications.

Following are links for Thunderon® Conductive and Dissipative brushes:

Conductive Brushes

Dissipative Brushes
