ESD & Cleanroom Brushes: Dissipative Brushes

These brushes are made with 100% Thunderon®, a conductive filament, or a mixture of Thunderon® and Goat Hair. Thunderon® is a very fine (.0015 diameter) acrylic fiber chemically bonded with copper sulfide. The special fiber will dissipate a charge on an electronically charged surface. The surface resistivity of Thunderon® is 10^-2. The plastic handle is dissipative with a surface resistivity of 10⁵.

Note: Conductive fibers are NOT recommended for use with unencapsulated electronic microcircuits. Minute pieces of conductive material have been known to cause short circuits.

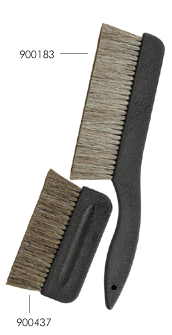

Product Series	900183	900437
Bristle Material	Part #	Part #
Thunderon®	900183T	900437T
Thunderon®/Goat	900183	900437
Handle Length	9-3/4"	4"
Handle Width	1/4"	1/4"
Bristle Trim Length	1-1/4"	1-1/4"
Bristle Length	5-1/8"	3-3/8"
Bristle Width	5/16"	5/16"
Use	Static charge dissipation	Static charge dissipation
