ESD & Cleanroom Brushes: Anti-Static Brushes

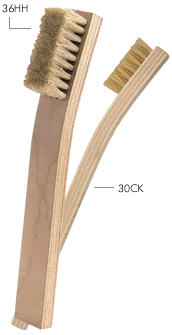

The 30 Series is a small, inexpensive, three-row "scratch" or "toothbrush" style brush made of rugged and static-neutral Plywood. The 36 Series is a four-row "scratch" brush on a larger static-neutral handle. Horse Hair versions are great cleaners/dusters. Hog Bristle versions work great where a stiffer brush is needed. Both styles are available in Horse Hair (HH), Hog Bristle (CK), stiff Stainless Steel (SS) or stiff Brass (B) material.

Application: All materials for these high quality brushes are manufactured for detail cleaning, such as printed circuit boards and SMT assemblies, or for use as fluid applicators.

All metal and wood handle brushes can be used in ESD sensitive environments as long as the brush remains saturated in liquid. It is recommended that the brush be tested on the required application to confirm ESD compatibility.

Product Series	30	36
Bristle Material	Part #	Part #
Hog Bristle	30CK	36CK
Horse Hair	30HH	36HH
Brass	30B	36B
Stainless Steel	30SS	36SS
Handle Length	7-3/4"	8-3/8"
Handle Width	7/16"	1-1/16"
Bristle Trim Length	7/16"	3/4"
Bristle Length	1-3/8"	2-1/8"
Bristle Width	1/4"	7/8"
Use	Board rework and cleanup	Board rework and cleanup General utility brush
