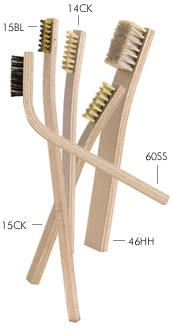

The 11P, 14 and 15 Series brushes are the same style Plywood handles, with one, two or three rows of bristles, hand laced with stainless steel wire for maximum fiber retention and long use. The 11P has a small face width. The 14 Series has a slightly wider Plywood handle. The 15 Series has hand laced fibers for maximum fiber retention and durability. Versions with extra fine Stainless Steel and Brass fill (.003" diameter) provide a very soft cleaning brush. The 15L Series is a 15 Series with the Plywood handle almost twice as long to reach those extra far away locations. The 46 Series is a large scrubber brush to be used when wide areas are cleaned. Again, the fibers are hand laced. The 60 Series is another variation on the 15 and 15L Series with a 60 degree angle handle to reach difficult locations. All brushes are available in Horse Hair (HH), Hog Bristle (CK), Stainless Steel (SS) or Brass (B) material.

Application: All materials for these high quality brushes are manufactured for detail cleaning, such as printed circuit boards and SMT assemblies, or for use as fluid applicators.

All metal and wood handle brushes can be used in ESD sensitive environments as long as the brush remains saturated in liquid. It is recommended that the brush be tested on the required application to confirm ESD compatibility.
Product Series 11P 14 15 15L 46 60
Bristle Material Part # Part # Part # Part # Part # Part #
   Hog Bristle 11CKP 14CK 15CK 15CKL 46CK 60CK
   Horse Hair 11HHP 14HH 15HH 15HHL 46HH 60HH
   Brass 11BP 14B 15B 15BL 46B 60B
   Soft Brass 11BP-003 14B-003 15B-003 15BL-003 ----- -----
   Stainless Steel 11SSP 14SS 15SS 15SSL 46SS 60SS
   Soft Stainless Steel 11SSP-003 14SS-003 15SS-003 15SSL-003 ----- -----
Handle Length 7-3/4" 7-3/4" 7-3/4" 14" 8-1/2" 7-3/4"
Handle Width 1/4" 3/8" 7/16" 7/16" 1" 7/16"
Bristle Trim Length 7/16" 7/16" 7/16" 7/16" 3/4" 7/16"
Bristle Length 1-7/16" 1-3/8" 1-3/8" 1-3/8" 1-5/8" 1-3/8"
Bristle Width 1/8" 1/4" 1/4" 1/4" 7/8" 1/4"
Use Fine detail cleaning Slightly wider for tough spots Detail cleaning and scrubbing Long handle detail cleaning Larger scrubber

60 degree angle for tough spots
